A fiberglass one-piece molded animal transportation unit with (6) six animal compartments and (1) storage compartment with the access door in the back of the unit.  Standard features include a fresh air ventilation system vented to each compartment, a pass-through swing door in the front compartment, bright white LED lighting in each compartment, solid partitions creating 6 individual compartments, sloped floor drainage system, back up alarm, high-low brake lights and flashers, and Ultimate Safety doors with large adjustable louvers.

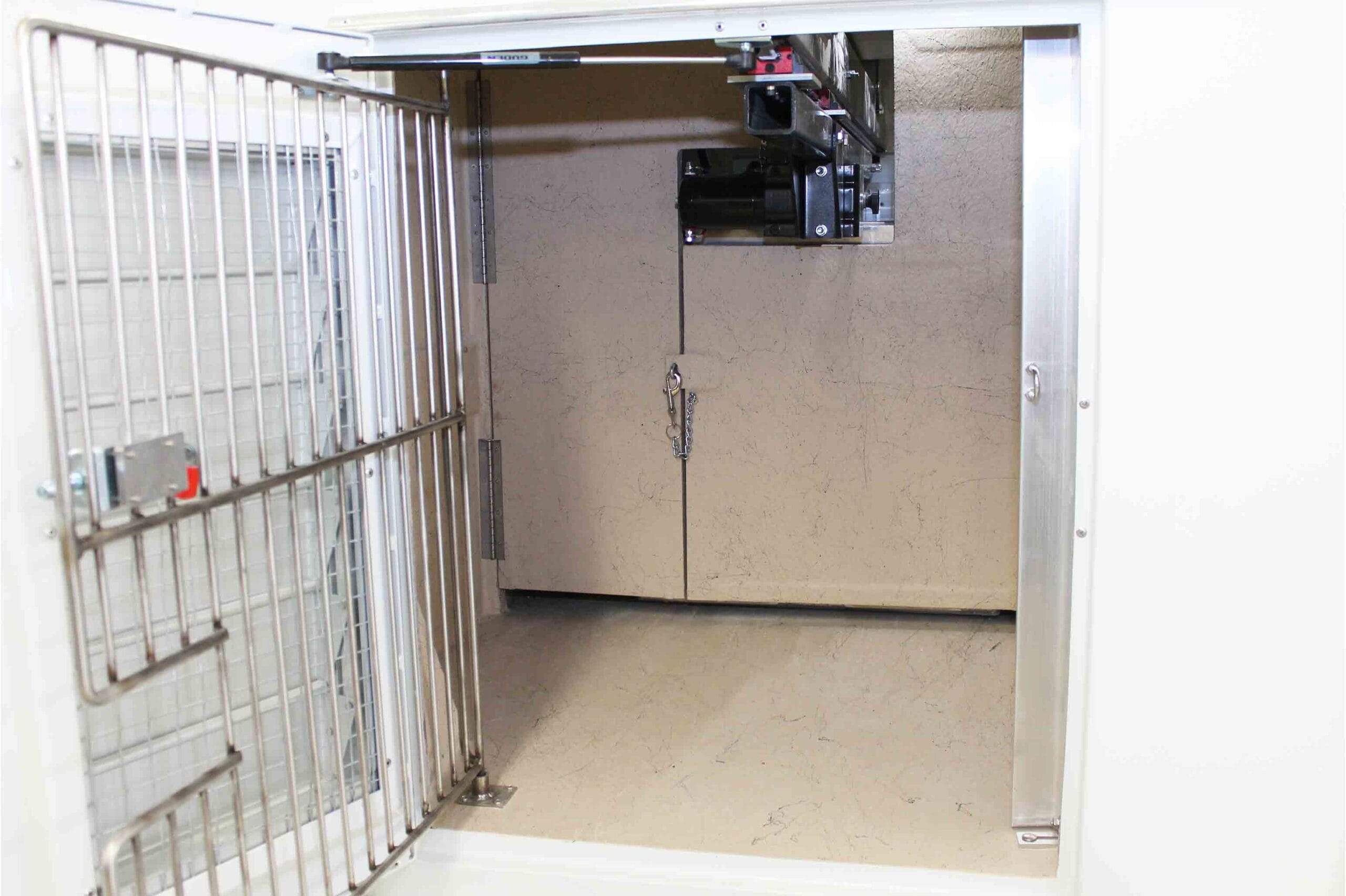

Telescoping monorail Back Saver hoist system with high capacity precision ground ball type linear bearings mounted in front pass through compartment with electric hoist and wireless remote control, curbside access.  Hoist operates with a large aluminum cage.

Measured from center of partitions

Constructed using a .75” foam composite board molded and sealed into the unit with three layers of fiberglass. The top layer thickness is .1875” and the bottom layers are .15625” and .1875” in thickness. Floors have a .75” recess creating a trough under the unit with individual drain capabilities. The floor is sloped to the center, so drainage flow is directed to the drain holes and into the trough under the unit keeping compartment floors dry and clean. The undercarriage is sealed with fiberglass which provides maximum insulation preventing heat from rising through the floor.

Walls and ceilings are gel coat sealed and webbed to provide a smooth, easy to clean finish in the compartments. (Note: Bodies can be made to your specifications and partitions can be made with wire).
